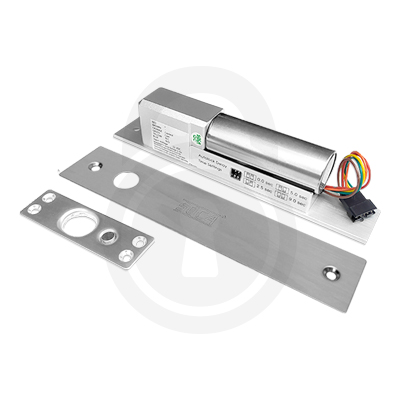

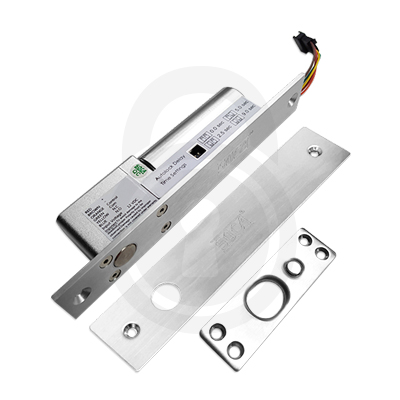

SL-100A

ELECTRIC DROP BOLT

Power Supply	A1@DC12V
Current	Operation 900mA, Holding 360mA

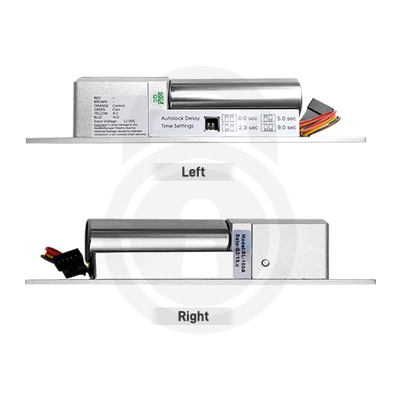

Operation Delay Time	0sec, 2.5sec, 5sec, 9sec
Signal Output	Door Sensor (250mA)
Dimensions	– Face Plate 200 (L) x 32 (W) x 42 (H) mm – Strike Plate 90 (L) x 26 (W)x 2.5 (H) mm – Bolt 16mm (Throw) x15.5mm (Diameter)
Bolt Extension	5/8" (16mm)
Safety Measures	(1) Fall-safe Type (Power to Lock) (2) Bullt-in photo couplers door open push button input contact. Door will lock again automatically when door is not open within 5 seconds
