| Frequency | 125 kHz & 13.56 MHz |
|---|---|
| Protocol | Open Supervised Device Protocol (OSDP) mode |
| Input Voltage | 5-16 VDC (12 VDC for RS-485) |
| Keypad | No |
| Color | Black |
| Communications | Optional OSDP with SCP over RS4854Wiegand/Clock-and-Data Interface 500ft (150m) (22AWG) – Use Shielded cable for best results |
| Operating Voltage Range | 5-16 VDC, Linear supply recommended |
| Storage Temperature | -55º to 85º C |
| Operating Temperature | -35°C ~ 65°C |
| Operating Humidity | 5% to 95% |
| Dimension | 48x103x23 (mm) |

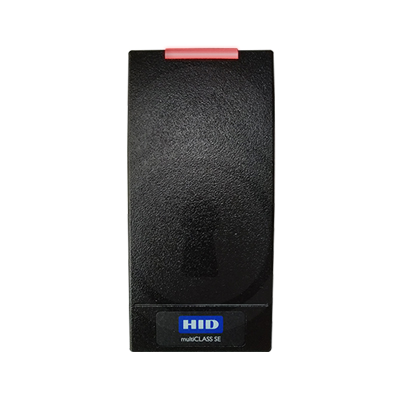

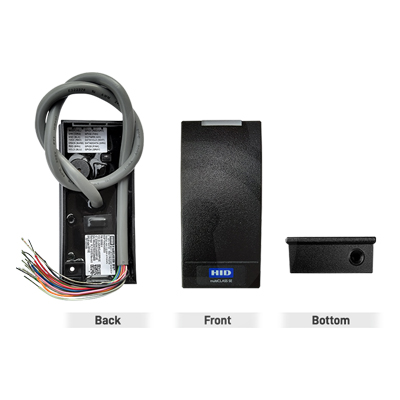

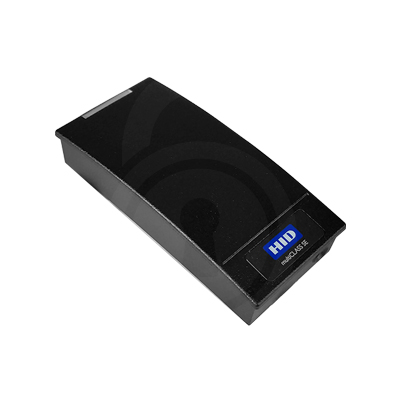

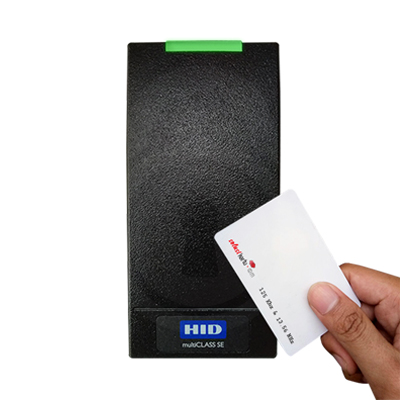

HIDRP10
MULTI CLASS READER HID ORIGIN
The multiCLASS SE® RP10 is part of HID Global’s iCLASS SE platform for adaptable, interoperable access control. Designed for door applications requiring a small footprint card reader, multiCLASS SE® RP10 supports a broad array of high frequency 13.56 MHz and low frequency 125kHz credential technologies and a variety of form factors including; cards, fobs and mobile devices. Configurable to support HID Mobile Access®.
